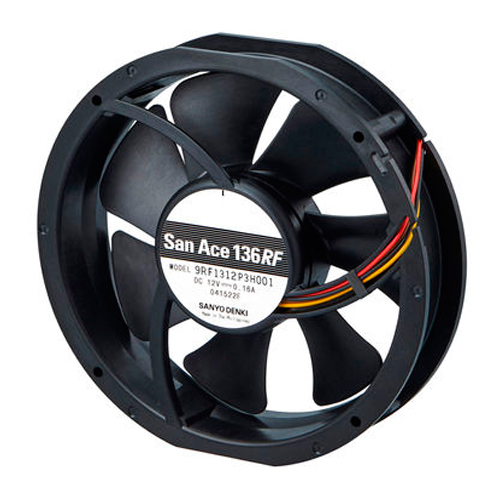

Quạt tản nhiệt tròn Sanyo Denki 9RF1312P3H001 DC12V 0.16A 136x28mm

Reversible Flow Fan - 136x28 - 9RF

SANYO DENKI EUROPE SA. is pleased to introduce its new San Ace 136 9RF type DC fan, measuring 136mm diameter by 28mm thick. This reversible flow fan has been designed to deliver air flow in the two opposite directions, contributing to reduce equipment costs and to save space.

Features
1) Reduces the required number of fans
 wind direction of the fan can be switched so fewer fans are required
 reduces equipment costs and saves space
2) Same cooling performance in both directions
approximately same air flow and static pressure in both directions
3) PWM Speed Control Function
to manage power consumption and noise

How to read model number*



Air Flow / Static Pressure Curves



PWM Duty Cycle / Speed



Main Specification 9RF serie

• Size ................................. 1 size : 136mm diameter by 28mm thick
• Air flow ........................... 2m3/min - 70.7CFM
• Static pressure .............. forward: 102Pa - reverse: 104Pa
• Rated voltage ................. 12 or 24VDC depending on models
• Expected life time .......... 40,000 hours at 60°C
• Speed control ................. PWM (25kHz)
• Standard sensor ............. pulse sensor; without sensor & lock sensor (in option)

Target Applications

• House mechanical ventilation
• Air conditioner
• Cold drink vending machines
• Food display cases
• Printing machines
• Paper converting machines
