Quick Facts
• Available in long and short cased
• Size from 315 to 2000 mm
• Capacities to 360,000 m3/h
• Static pressure up tp 1000 Pa
• Suitable for exhaust and ventilation
Download Brochures
Axial Flow Fan General Instruction (IGB10.E2)

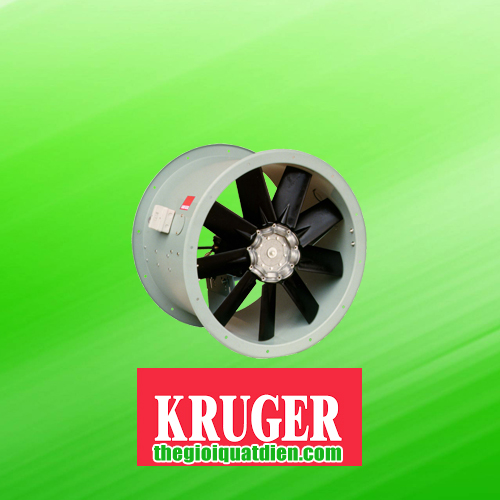

CONSTRUCTION
Double flanged casing manufactured in mild steel or galvanised sheet steel, the impeller having manually adjustable pitch blades is made of PPG, PAG or ALU.
FINISH
Painting or galvanised after manufacture are normal finishes on all parts.
OPERATING TEMP.
-20deg.C to +55deg.C
MOTOR
Totally enclosed Class F motor, to a min. IP54 protection are fitted as standard. Standard motor up to 2.2kW are usually supplied on DOL starting, motor 3.0kW and above are star/delta starting.
For more details, please contact your nearestKruger Office.
