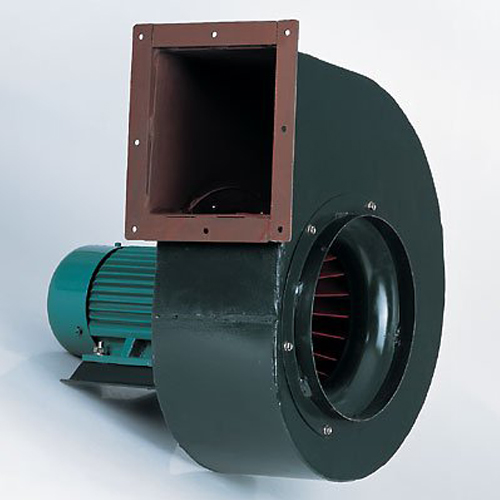

Quạt ly tâm trung áp Wington Series CRC

TECHNICAL PERFORMANCE DATA Model Diameter (mm/Inch) Phase (Ph) Rating Votage (V) Power (Kw) Speed (RPM) Current (A) Air Volume (m3/h) Noise [dB(A)] CRC265FCW 265mm Three 380 0.75 1400 2.0 1455(325Pa)~2620(235Pa) 79 CRC265QCW 415 CRC305FCW 305mm Three 380 1.5 1400 3.7 2640(510Pa)~3975(440Pa) 83 CRC305QCW 415 CRC343FCW 343mm Three 380 2.2 1400 5.0 3475(630Pa)~6395(575Pa) 86 CRC343QCW 415 CRC380FCW 380mm Three 380 4.0 1400 8.8 4950(730Pa)~9090(675Pa) 88 CRC380QCW 415 CRC406FCW 406mm Three 380 5.5 1400 11.6 7000(900Pa)~10990(800Pa) 91 CRC406QCW 415 CRC420FCW 420mm Three 380 7.5 1400 15.4 7255(950Pa)~12410(855Pa) 94 CRC420QCW 415 CRC445FCW 445mm Three 380 11 1400 22.6 10005(1030Pa)~14725(920Pa) 97 CRC445QCW 415   Model øD W W1 W2 A B L L1 L2 L3 n1-p1 n2-p2 n3-p1 n4-p2 CRC265 268 460 125 222 211 250 465 204 210 564 2-110.5 2-125 8-ø7.5 4-ø13 CRC305 308 515 140 248 231 273 524 230 238 632 2-115.5 3-91 10-ø7.5 4-ø13 CRC343 347 579 190 272 265 312 595 257 272 722 2-132.5 3-104 10-ø7.5 4-ø13 CRC380 384 645 205 312 311 336 644 277 296 782 2-155.5 3-112 10-ø7.5 4-ø13 CRC406 411 705 220 312 325 381 708 305 323 865 2-162.5 3-127 10-ø7.5 4-ø15 CRC420 426 756 260 346 331 420 756 320 344 936 2-165.5 3-140 10-ø7.5 4-ø15 CRC445 452 841 320 330 351 450 808 347 363 988 2-175.5 3-150 10-ø7.5 4-ø15
