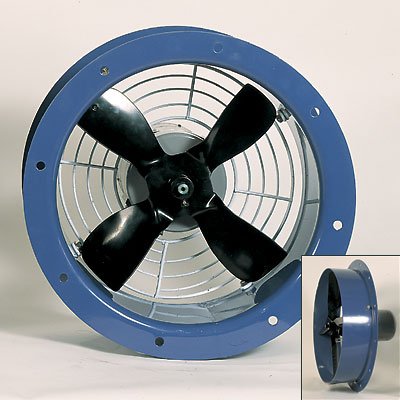

Quạt thông gió Wington Series BVA

TECHNICAL PERFORMANCE DATA MODEL DIAMETER (mm/Inch) RATING VOLTAGE(V) SPEED (RPM) POWER (W) CURRENT (Amps) WEIGHT (kg) MEASUREMENT (cbm) NOISE [d(BA)] BVA305-1-6 305mm/12" 220 950 53 0.26 9.20 0.097 53 BVA305-3-6 305mm/12" 380 950 107 0.36 9.20 0.097 53 BVA305-1-4 305mm/12" 220 1410 63 0.31 9.50 0.097 56 BVA305-3-4 305mm/12" 380 1430 61 0.19 9.50 0.097 56 BVA380-1-6 381mm/15" 220 930 58 0.28 11.80 0.141 57 BVA380-3-6 381mm/15" 380 930 66 0.24 11.80 0.141 57 BVA380-1-4 381mm/15" 220 1400 105 0.51 12.50 0.141 62 BVA380-3-4 381mm/15" 380 1410 88 0.28 12.50 0.141 62 BVA480-1-6 483mm/19" 220 900 110 0.50 15.00 0.240 62 BVA480-3-6 483mm/19" 380 930 151 0.48 15.00 0.240 62 BVA480-1-4 483mm/19" 220 1380 319 1.50 15.00 0.240 68 BVA480-3-4 483mm/19" 380 1400 235 0.65 15.00 0.240 68 BVA610-1-6 610mm/24" 220 900 352 1.70 25.50 0.203 70 BVA610-3-6 610mm/24" 380 910 253 0.65 25.50 0.203 70 BVA610-1-4 610mm/24" 220 1400 1000 4.70 30.00 0.203 82 BVA610-3-4 610mm/24" 380 1410 726 2.00 30.00 0.203 82   Model D D1 H1 H2 L1 L2 n1-p1 BVA305 312 355 390 316 150 295 8-10 BVA380 385 432 465 389 160 310 8-10 BVA480 488 540 582 492 170 340 12-13 BVA610 614 668 708 618 200 385 12-13
